產品描述
阿普奇嵌入式工控機E5系列是一款專為工業自動化和邊緣計算應用而設計的超緊湊型工業計算機。采用Intel? Celeron? J1900超低功耗處理器，具備出色的能效比和低熱量設計，確保在各種工業環境下穩定運行。該系列集成雙Intel?千兆網卡，提供高速穩定的網絡連接，滿足數據傳輸和通信需求。配備了2個板載顯示接口，支持多種顯示輸出，方便將實時數據和監控圖像展示在各種顯示器上。支持12~28V直流寬壓電源，適應不同的電源環境，確保在各種工作條件下都能穩定運行。此外，還支持WiFi/4G無線擴展，方便實現無線連接和控制，進一步擴展了其應用場景。
超緊湊的機身設計使得阿普奇嵌入式工控機E5系列適合更多的嵌入式場景，無論是在自動化設備中還是在狹小的空間內，E5系列都能提供穩定高效的計算支持。
|
Model |
E5 |
|
|
?Processor System |
CPU | Intel??Celeron??Processor J1900, FCBGA1170 |
| TDP | 10W | |
| Chipset | SOC | |
| BIOS | AMI UEFI BIOS | |
|
Memory |
Socket | DDR3L-1333 MHz (Onboard) |
| Max Capacity | 4GB | |
|
Graphics |
Controller | Intel??HD Graphics |
|
Ethernet |
Controller | 2 * Intel??i210-AT (10/100/1000 Mbps, RJ45) |
|
Storage |
SATA | 1 * SATA2.0 Connector (2.5-inch hard disk with 15 + 7pin) |
| mSATA | 1 * mSATA Slot | |
|
Expansion Slots |
aDoor | 1 * aDoor Expansion Module |
| Mini PCIe | 1 * Mini PCIe Slot (PCIe2.0 x1 + USB2.0, with 1 * Nano SIM Card) | |
|

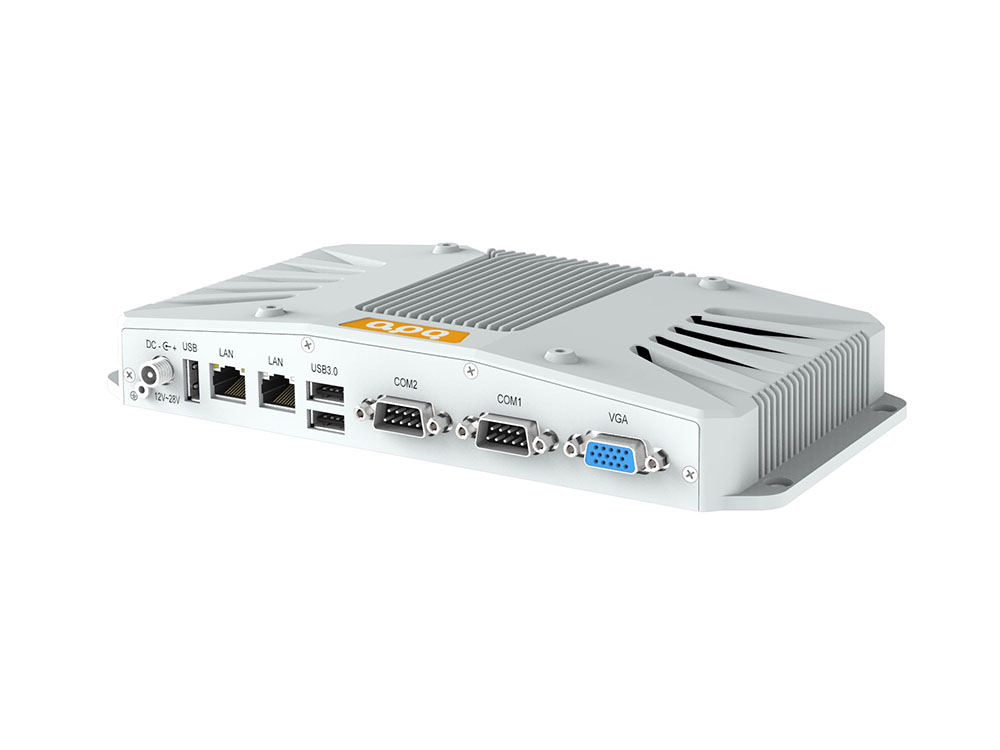

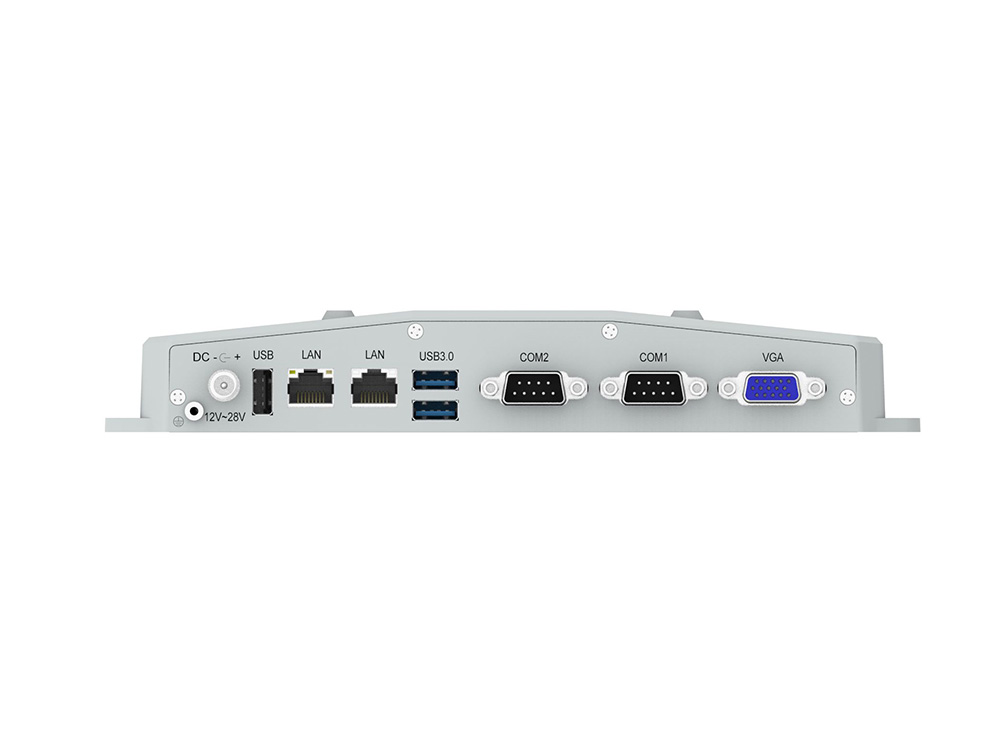

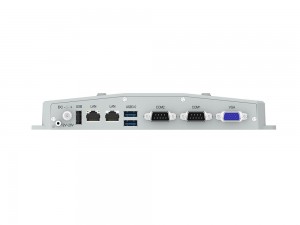

Front I/O |
USB | 2 * USB3.0 (Type-A) 1 * USB2.0 (Type-A) |
| Ethernet | 2 * RJ45 | |
| Display | 1 * VGA: max resolution up to 1920*1200 @ 60Hz | |
| Serial | 2 * RS232/485 (COM1/2, DB9/M) | |
| Power | 1 * Power Input Connector (12~28V) | |
|

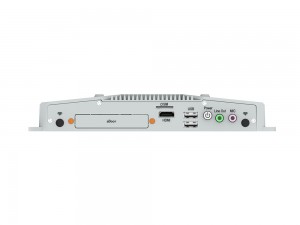

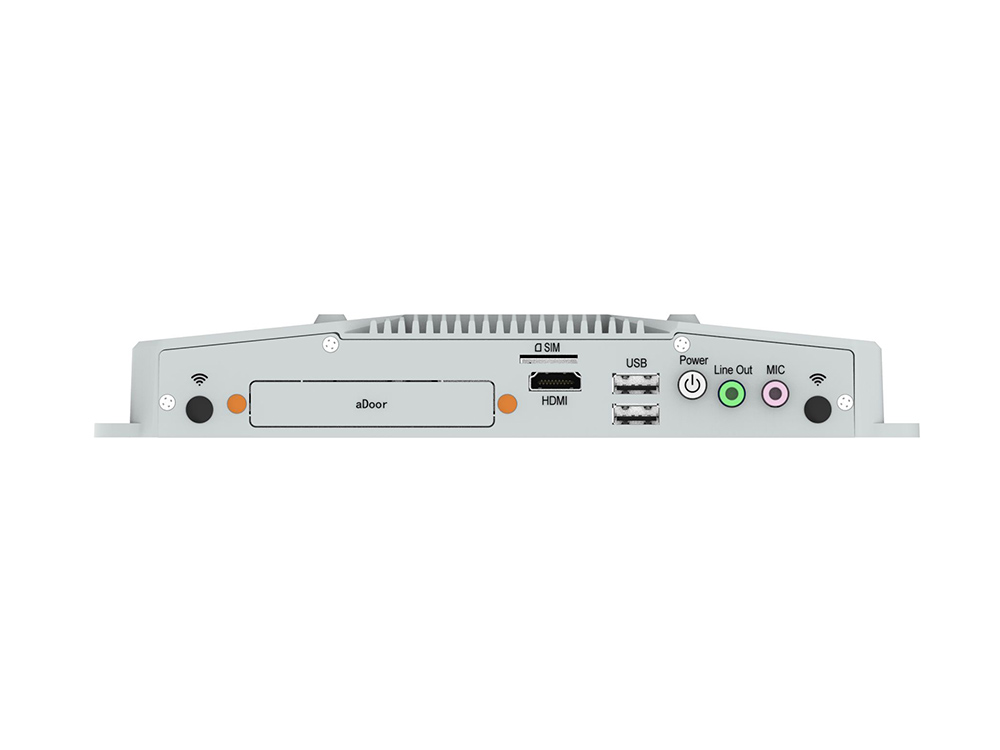

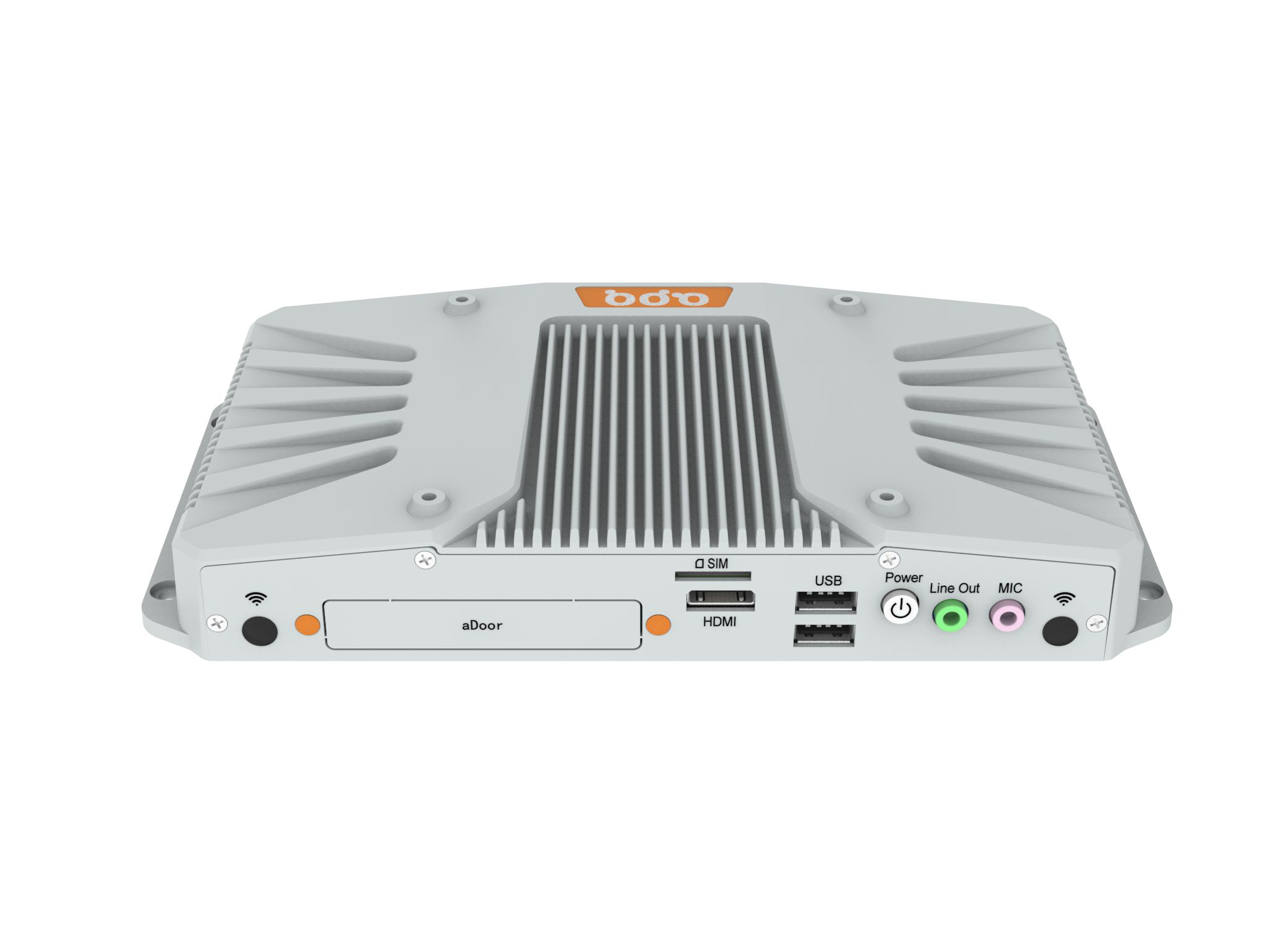

Rear I/O |
USB | 1 * USB3.0 (Type-A) 1 * USB2.0 (Type-A) |
| SIM | 1 * SIM Card slot | |
| Button | 1 * Power Button + Power LED | |
| Audio | 1 * 3.5mm Line-out Jack 1 * 3.5mm MIC Jack |
|
| Display | 1 * HDMI: max resolution up to 1920*1200 @ 60Hz | |
|
Internal I/O |
Front Panel | 1 * TFront Panel (3 * USB2.0 + Front Panel, wafer) 1 * Front Panel (wafer) |
| FAN | 1 * SYS FAN (wafer) | |
| Serial | 2 * COM (JCOM3/4, wafer) | |
| USB | 2 * USB2.0 (wafer) 1 * USB2.0 (wafer) |
|
| Display | 1 * LVDS (wafer) | |
| Audio | 1 * Front Audio (Line-Out + MIC, header) 1 * Speaker (2-W (per channel)/8-Ω?Loads, wafer) |
|
| GPIO | 1 * 8bits DIO (4xDI and 4xDO, header) | |
|
Power Supply |
Type | DC |
| Power Input Voltage | 12~28VDC | |
| Connector | 1 * DC5525 with lock | |
| RTC Battery | CR2032 Coin Cell | |
|
OS Support |
Windows | Windows 7/8.1/10 |
| Linux | Linux | |
|
Watchdog |
Output | System Reset |
| Interval | Programmable 1 ~ 255 sec | |
|
Mechanical |
Enclosure Material | Radiator: Aluminum alloy, Box: Aluminum alloy |
| Dimensions | 235mm(L) * 124.5mm(W) * 35mm(H) | |
| Weight | Net: 0.9Kg
Total: 1.9Kg (Include packaging) |
|
| Mounting | VESA, Wall mounted, Desk mounting | |
|
Environment |
Heat Dissipation System | Passive heat dissipation |
| Operating Temperature | -20~60℃ | |
| Storage Temperature | -40~80℃ | |
| Relative Humidity | 5 to 95% RH (non-condensing) | |
| Vibration During Operation | With SSD: IEC 60068-2-64 (3Grms@5~500Hz, random, 1hr/axis) | |
| Shock During Operation | With SSD: IEC 60068-2-27 (30G, half sine, 11ms) | |
| Certification | CCC, CE/FCC, RoHS | |
-
