產品描述
阿普奇車路協同控制器E7Pro系列Q170平臺是一款綜合性的高性能嵌入式工控機，專為車路協同系統而設計。它集成了強大的計算能力和豐富的功能，以滿足現代交通領域?qū)τ跀?shù)據處理、通信和控制的復雜需求。E7 Pro系列Q170平臺嵌入式工控機采用了先進的Intel? LGA1511 6~9th處理器技術，結合Intel? Q170芯片組，提供了卓越的計算性能和穩定性。這種強大的處理器組合使得E7 Pro系列Q170平臺能夠迅速處理大量的數據，并實時做出準確的決策，確保車路協同系統的順暢運行。在通信方面，E7 Pro系列Q170平臺配備了多個高速網絡接口和串口，支持多種通信協議，實現了與各類設備的無縫連接。這種強大的通信能力確保了控制器能夠與車輛、交通信號燈、傳感器等各種交通元素進行實時數據交換，從而實現了車路協同系統的高效協同和智能化控制。此外，E7 Pro系列Q170平臺還提供了大容量存儲空間和可擴展的內存插槽，滿足了長時間數據存儲和大規模應用的需求。其高效的顯示輸出功能，支持多種分辨率和顯示接口，為用戶提供了清晰、逼真的視覺體驗。
值得一提的是，E7 Pro系列Q170平臺還支持無線功能擴展，包括4G/5G、WIFI和藍牙等，使得工控機具備了遠程監控和管理的能力。用戶可以通過移動設備或云平臺對工控機進行實時訪問和控制，實現了對車路協同系統的遠程管理和運維。無論是應用于智能交通管理、車輛監控還是自動駕駛等領域，E7 Pro-Q170都能發揮出色的性能，推動車路協同系統的創新和發展。
|
Model |
E7 Pro |
|
|
CPU |
CPU | Intel? 6/7/8/9th Generation Core / Pentium/ Celeron Desktop CPU |
| TDP | 65W | |
| Socket | LGA1151 | |
| Chipset | Q170 | |
| BIOS | AMI UEFI BIOS (Support Watchdog Timer) | |
|
Memory |
Socket | 2 * Non-ECC U-DIMM Slot, Dual Channel DDR4 up to 2133MHz |
| Max Capacity | 64GB, Single Max. 32GB | |
|
Graphics |
Controller | Intel? HD Graphics |
|
Ethernet |
Controller | 1 * Intel i210-AT GbE LAN Chip (10/100/1000 Mbps) 1 * Intel i219-LM/V GbE LAN Chip (10/100/1000 Mbps) |
|
Storage |
SATA | 3 * 2.5" SATA, Quick release hard disk bays (T≤7mm) ),?Support?RAID?0, 1, 5 |
| M.2 | 1 * M.2 Key-M (PCIe x4 Gen 3 + SATA3.0, NVMe/SATA SSD Auto Detect, 2242/2260/2280) | |
|
Expansion Slots |
PCIe Slot | Support PCIe module card(1*PCIe x 16+1*PCIe x4/1*PCIe x16+3*PCI/2*PCIe x8+2*PCI) PS:Expansion Card length limited 320mm,TDP limited 450W |
| aDoor/MXM | 2* APQ MXM /aDoor Bus (Optional MXM 4 * LAN/4 * POE/6 * COM/16 * GPIO expansion card) | |
| Mini PCIe | 1 * Mini PCIe (PCIe2.0 x1 + USB 2.0, with 1*Nano SIM Card slot) | |
| M.2 | 1 * M.2 Key-B (PCIe2.0 x1 + USB3.0, with 1 * SIM Card, 3042/3052 ) | |
|

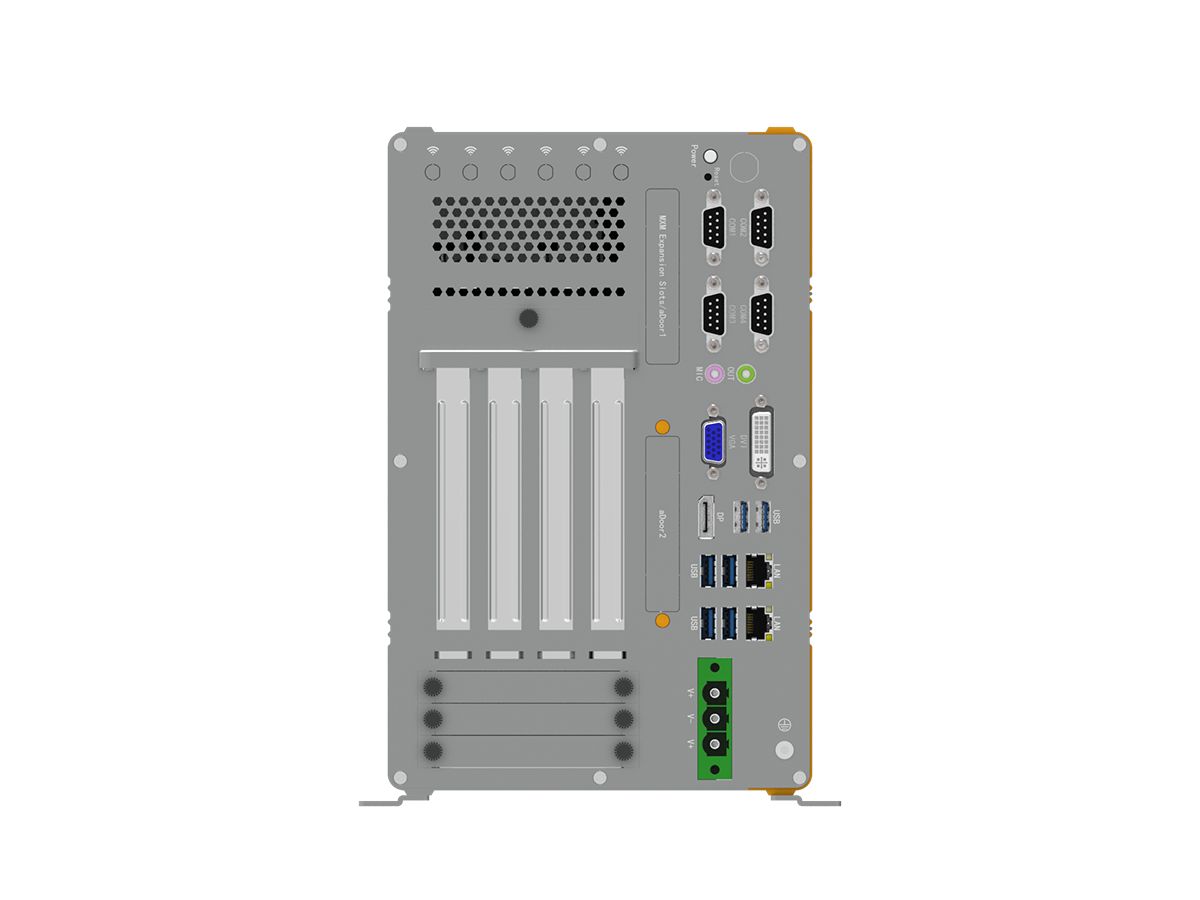

Front I/O |
Ethernet | 2 * RJ45 |
| USB | 6 * USB3.0 (Type-A, 5Gbps) | |
| Display | 1 * DVI-D: max resolution up to 1920*1200 @ 60Hz 1 * VGA (DB15/F): max resolution up to 1920*1200 @ 60Hz 1 * DP: max resolution up to 4096*2160 @ 60Hz |
|
| Audio | 2 * 3.5mm Jack (Line-Out + MIC) | |
| Serial | 2 * RS232/422/485 (COM1/2, DB9/M, Full Lanes, BIOS Switch) 2 * RS232 (COM3/4, DB9/M) |
|
| Button | 1 * Power Button + Power LED 1 * System Reset Button (Hold down 0.2 to 1s to restart, and hold down 3s to clear CMOS) |
|
|
Rear I/O |
Antenna | 6 * Antenna hole |
|
Internal I/O |
USB | 2 * USB2.0(wafer, Internal I/O) |
| LCD | 1 * LVDS (wafer): max resolution up to 1920*1200 @ 60Hz | |
| TFront Panel | 1 * TFPanel (3 * USB 2.0 + FPANEL, wafer) | |
| Front Panel | 1 * Front Panel (wafer) | |
| Speaker | 1 * Speaker (2-W (per channel)/8-Ω Loads, wafer) | |
| Serial | 2 * RS232 (COM5/6, wafer, 8x2pin, PHD2.0) | |
| GPIO | 1 * 16bit GPIO (wafer) | |
| LPC | 1 * LPC (wafer) | |
| SATA | 3 * SATA3.0 7P Connector | |
| SATA Power | 3 * SATA Power (SATA_PWR1/2/3, wafer) | |
| SIM | 2 * Nano SIM | |
| FAN | 2 * SYS FAN (wafer) | |
|
Power Supply |
Type | DC, AT/ATX |
| Power Input Voltage | 18~62VDC，?P=600/800/1000W | |
| Connector | 1 * 3Pin Connector, P=10.16 | |
| RTC Battery | CR2032 Coin Cell | |
|
OS Support |
Windows | 6/7th Core?: Windows 7/10/11
8/9th Core?: Windows 10/11 |
| Linux | Linux | |
|
Watchdog |
Output | System Reset |
| Interval | Programmable 1 ~ 255 sec | |
|
Mechanical |
Enclosure Material | Radiator: Aluminium, Box: SGCC |
| Dimensions | 363mm(L) * 270mm(W) * 169mm(H) | |
| Weight | Net:10.48 kg, Total:11.38 kg(Include packaging) | |
| Mounting | VESA, Wallmount,Desk mounting | |
|
Environment |

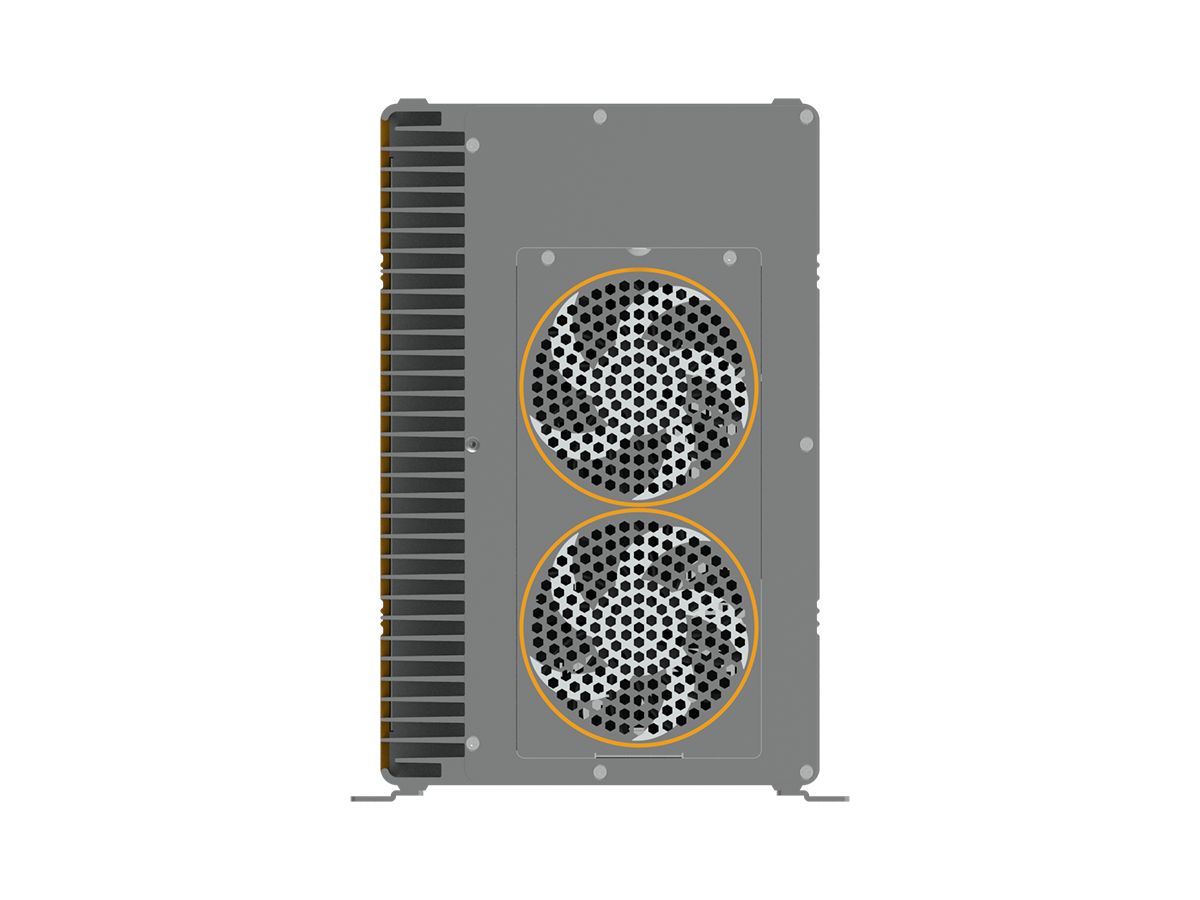

Heat Dissipation System | Fanless(CPU)
2*9cm PWM FAN(Internal) |
| Operating Temperature | -20~60℃?(SSD or M.2 Storage) | |
| Storage Temperature | -40~80℃ | |
| Relative Humidity | 5 to 95% RH (non-condensing) | |
| Vibration During Operation | With SSD: IEC 60068-2-64 (3Grms@5~500Hz, random, 1hr/axis) | |
| Shock During Operation | With SSD: IEC 60068-2-27 (30G, half sine, 11ms) | |
| Certification | CCC, CE/FCC, RoHS | |
-
