產品描述

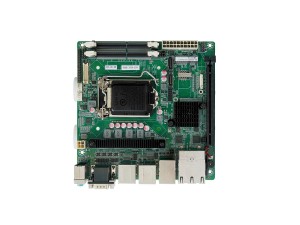

阿普奇Mini-ITX主板MIT-H31C是一款專為緊湊型設計和高性能而打造的主板。它支持Intel? 6~9th Gen Core/Pentium/Celeron處理器，能夠提供穩定而高效的性能，滿足各種計算需求。采用Intel? H310C芯片組，與最新的處理器技術完美結合，確保了卓越的穩定性和兼容性。主板配備兩個DDR4-2666MHz內存插槽，最高支持64GB內存，為多任務操作提供了充足的內存資源。板載5個Intel千兆網卡，確保了高速、穩定的網絡傳輸。此外，它還支持4個PoE（Power over Ethernet）接口，通過以太網為設備供電，使得遠程部署和管理變得更加方便。在擴展性方面，MIT-H31C提供了2個USB3.2和4個USB2.0接口，滿足各種USB設備連接需求。此外，它還配備了HDMI、DP和eDP顯示接口，支持多種顯示器連接，最高支持4K@60Hz分辨率，為用戶帶來清晰、流暢的視覺體驗。
總之，阿普奇Mini-ITX主板MIT-H31C憑借其強大的處理器支持、高速內存和網絡連接、豐富的擴展插槽和卓越的擴展性能，成為緊湊型高性能應用的理想選擇。
| Model | MIT-H31C | |
| ProcessorSystem | CPU | Support Intel??6/7/8/9th Generation Core / Pentium/ Celeron Desktop CPU |
| TDP | 65W | |
| Socket | LGA1151 | |
| Chipset | H310C | |
| BIOS | AMI 256 Mbit SPI | |
| Memory | Socket | 2 * Non-ECC SO-DIMM Slot, Dual Channel DDR4 up to 2666MHz |
| Capacity | 64GB,?Single Max. 32GB | |
| Graphics | Controller | Intel??HD Graphics |
| Ethernet | Controller | 4 * Intel i210-AT GbE LAN Chip (10/100/1000 Mbps, with PoE Power socket)?1 * Intel i219-LM/V GbE LAN Chip (10/100/1000 Mbps) |
| Storage | SATA | 2 * SATA3.0 7P Connector, up to 600MB/s |
| mSATA | 1 * mSATA (SATA3.0, Share slot with Mini PCIe, default) | |
| Expansion Slots | PCIe slot | 1 * PCIe x16 slot (Gen 3, x16 signal) |
| Mini PCIe | 1 * Mini PCIe (PCIe x1 Gen 2 + USB2.0, with 1 * SIM Card, Share slot with Msat, Opt.) | |
| Rear I/O | Ethernet | 5 * RJ45 |
| USB | 4 * USB3.2 Gen 1x1 (Type-A, 5Gbps,?Each group of two ports Max. 3A, one port Max. 2.5A)2 * USB2.0 (Type-A,?Each group of two ports Max. 3A, one port Max. 2.5A) | |
| Display | 1 * DP: max resolution up to 3840*2160 @ 60Hz1 * HDMI1.4: max resolution up to 2560*1440 @ 60Hz | |
| Audio | 3 * 3.5mm Jack (Line-out + Line-in + MIC) | |
| Serial | 2 * RS232/422/485 (COM1/2, DB9/M, Full Lanes, BIOS Switch) | |
| Internal I/O | USB | 2 * USB2.0 (Header) |
| Display | 1 * eDP: max resolution up to 1920*1200 @ 60Hz (Header) | |
| Serial | 4 * RS232 (COM3/4/5/6, Header) | |
| GPIO | 1 * 8 bits DIO (4xDI and 4xDO, wafer) | |
| SATA | 2 * SATA3.0 7P Connector | |
| FAN | 1 * CPU FAN (Header)1 * SYS FAN (Header) | |
| Front Panel | 1 * Front Panel (Header) | |
| Power Supply | Type | ATX |
| Connector | 1 * 8P 12V Power (Header)1 * 24P Power (Header) | |
| OS Support | Windows | 6/7th Core?: Windows 7/10/118/9th Core?: Windows 10/11 |
| Linux | Linux | |
| Watchdog | Output | System Reset |
| Interval | Programmable 1 ~ 255 sec | |

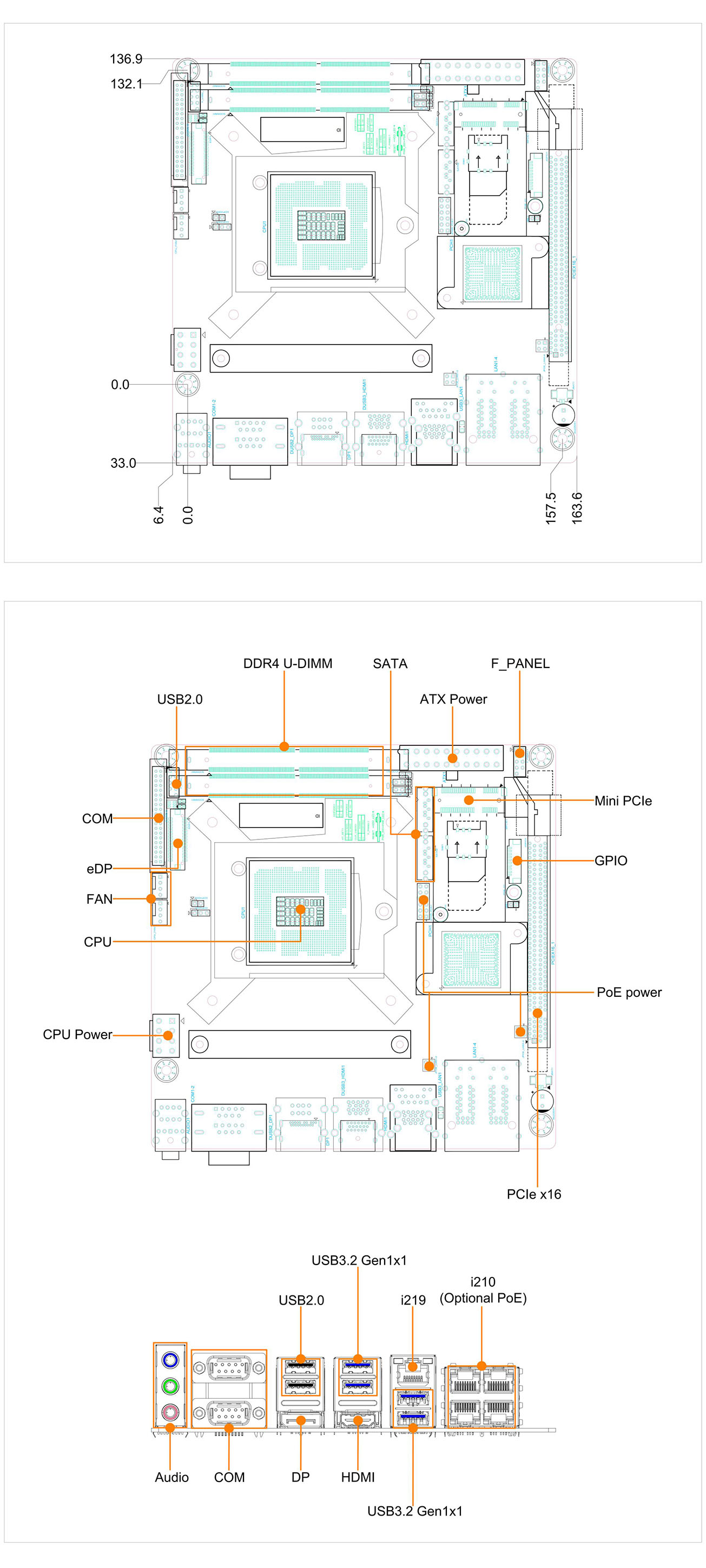

| Mechanical | Dimensions | 170 x 170 mm (6.7" x 6.7") |
| Environment | Operating Temperature | -20 ~ 60℃ (Industrial SSD) |
| Storage Temperature | -40 ~ 80℃ (Industrial SSD) | |
| Relative Humidity | 10 to 95% RH (non-condensing) | |
-
