PLE7S系列Q670平臺 工業一體機/工業平板電腦 電阻觸摸屏

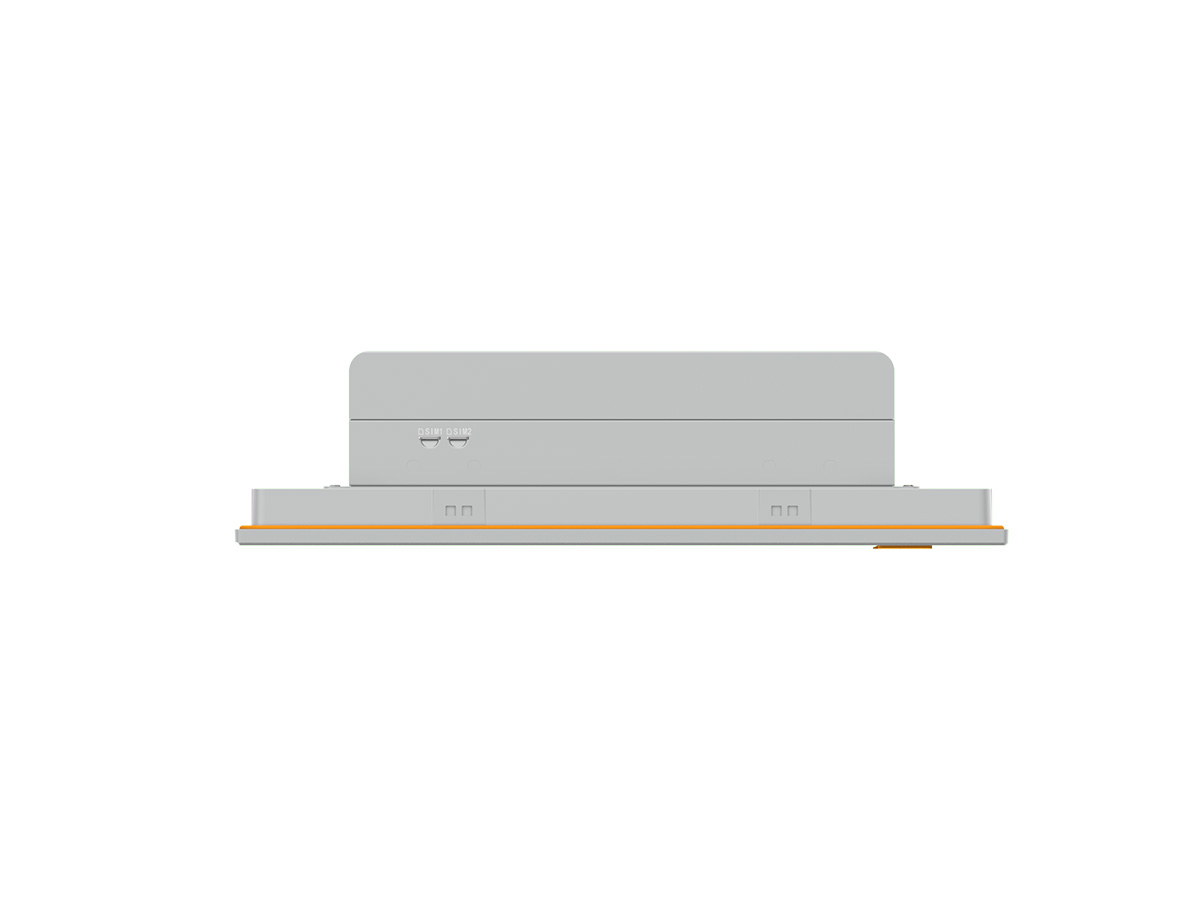

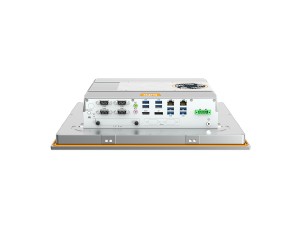

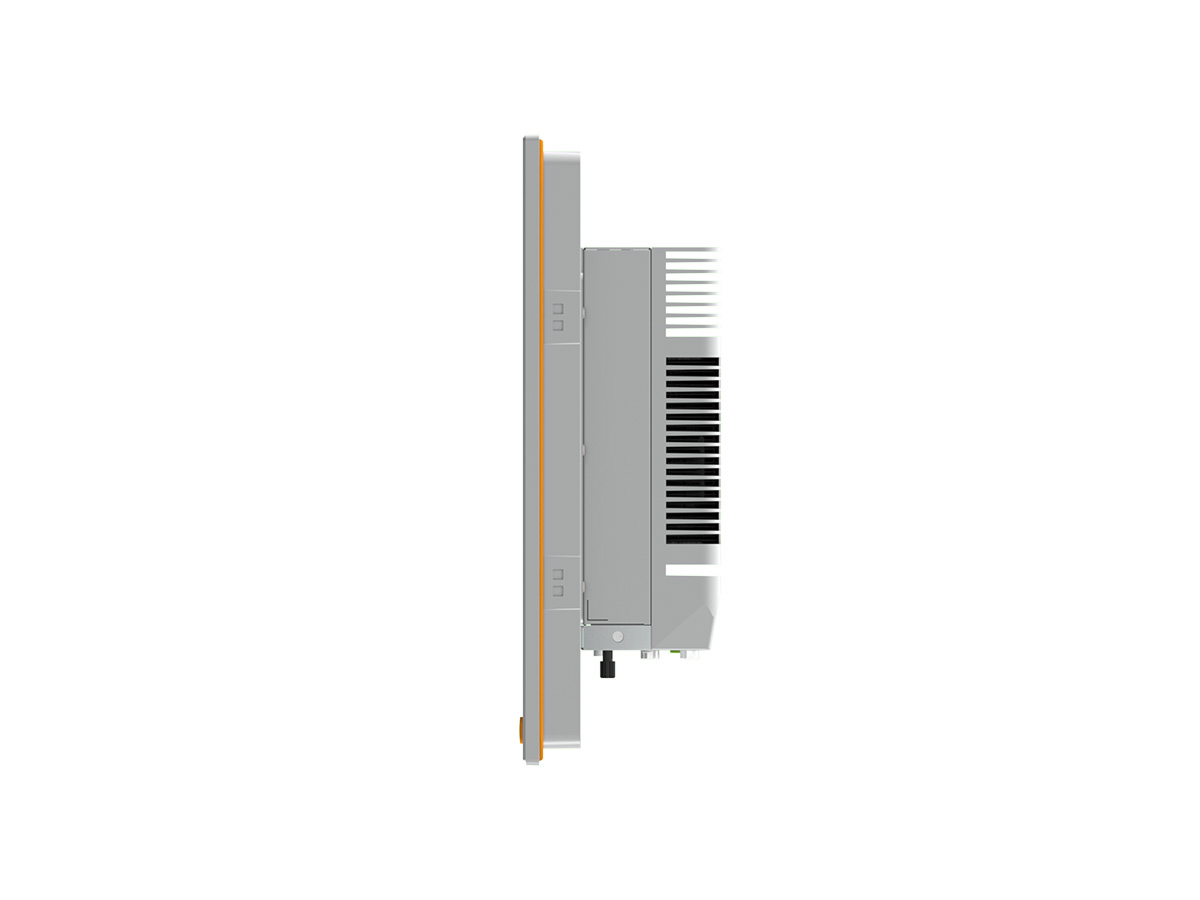

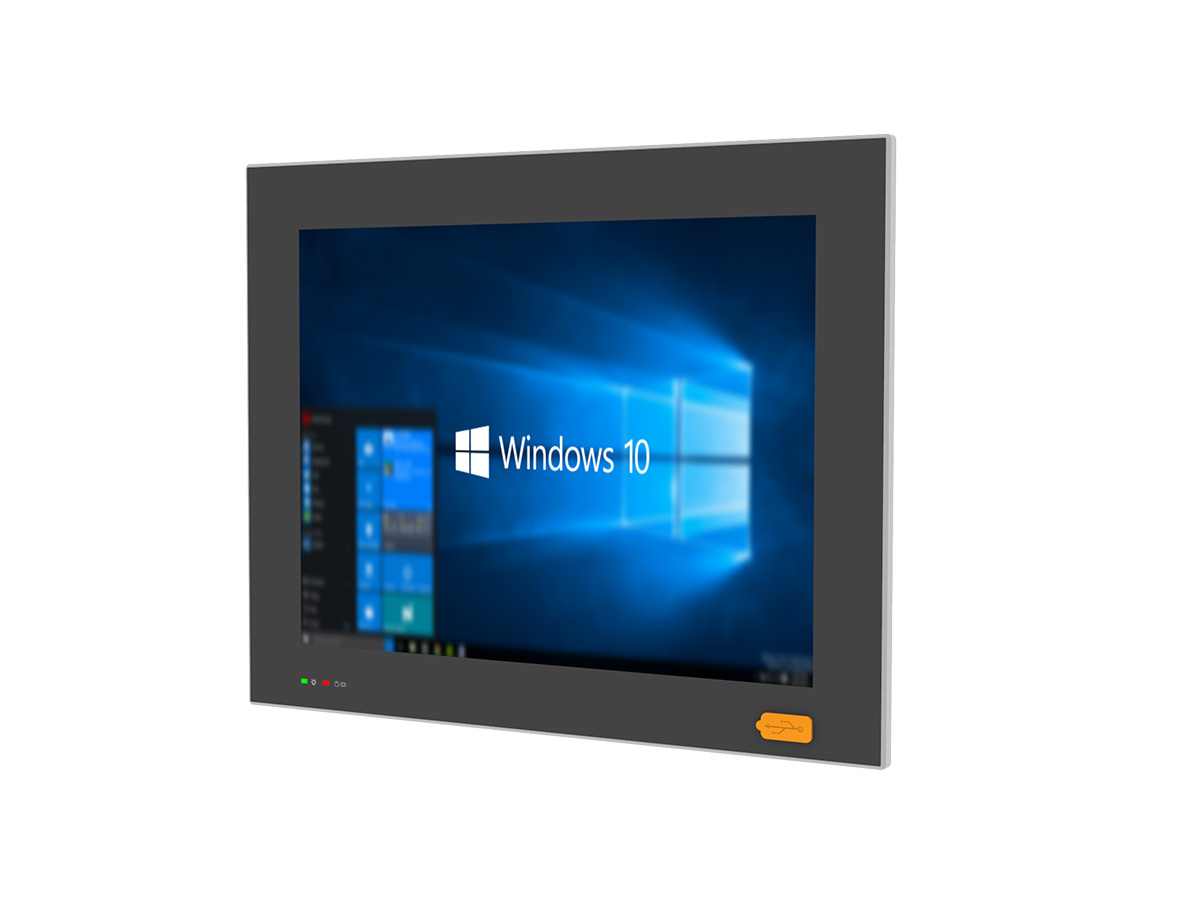

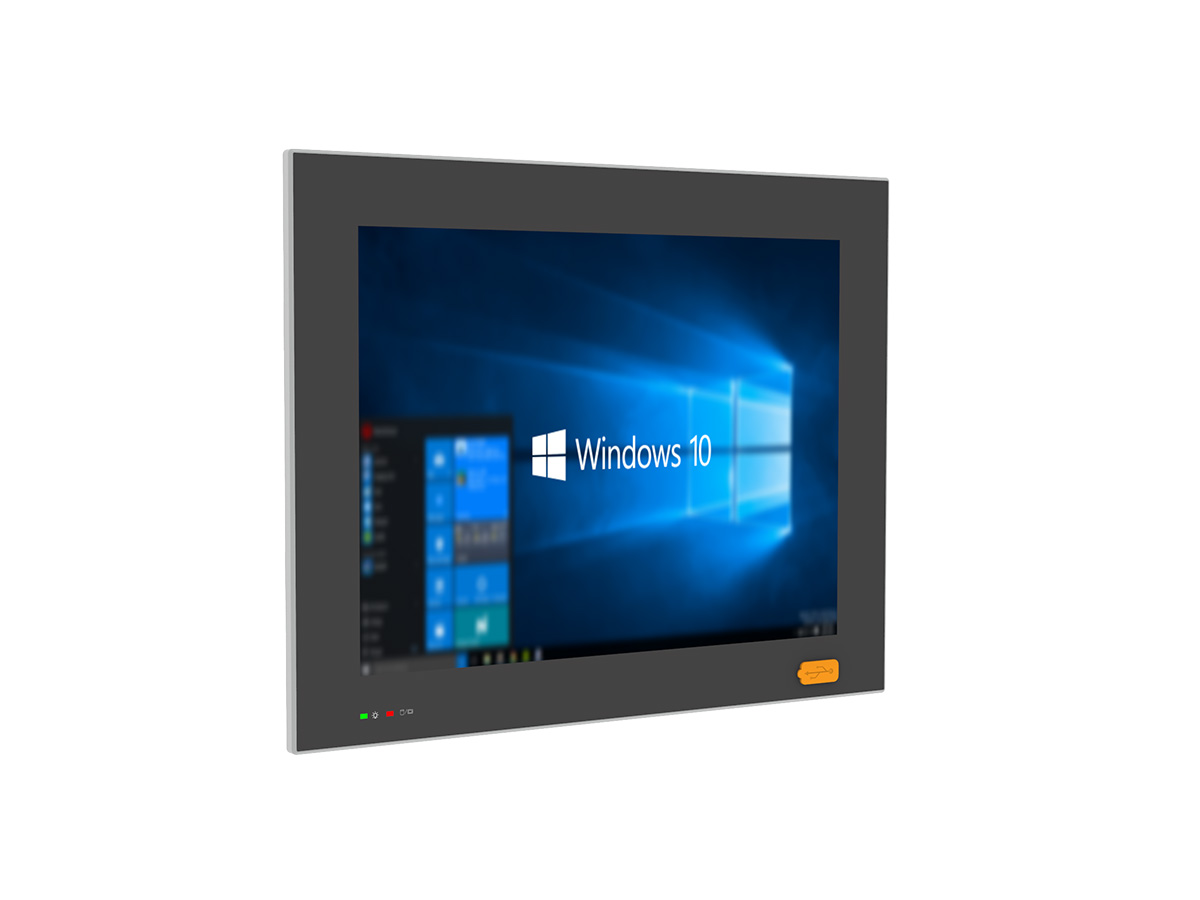

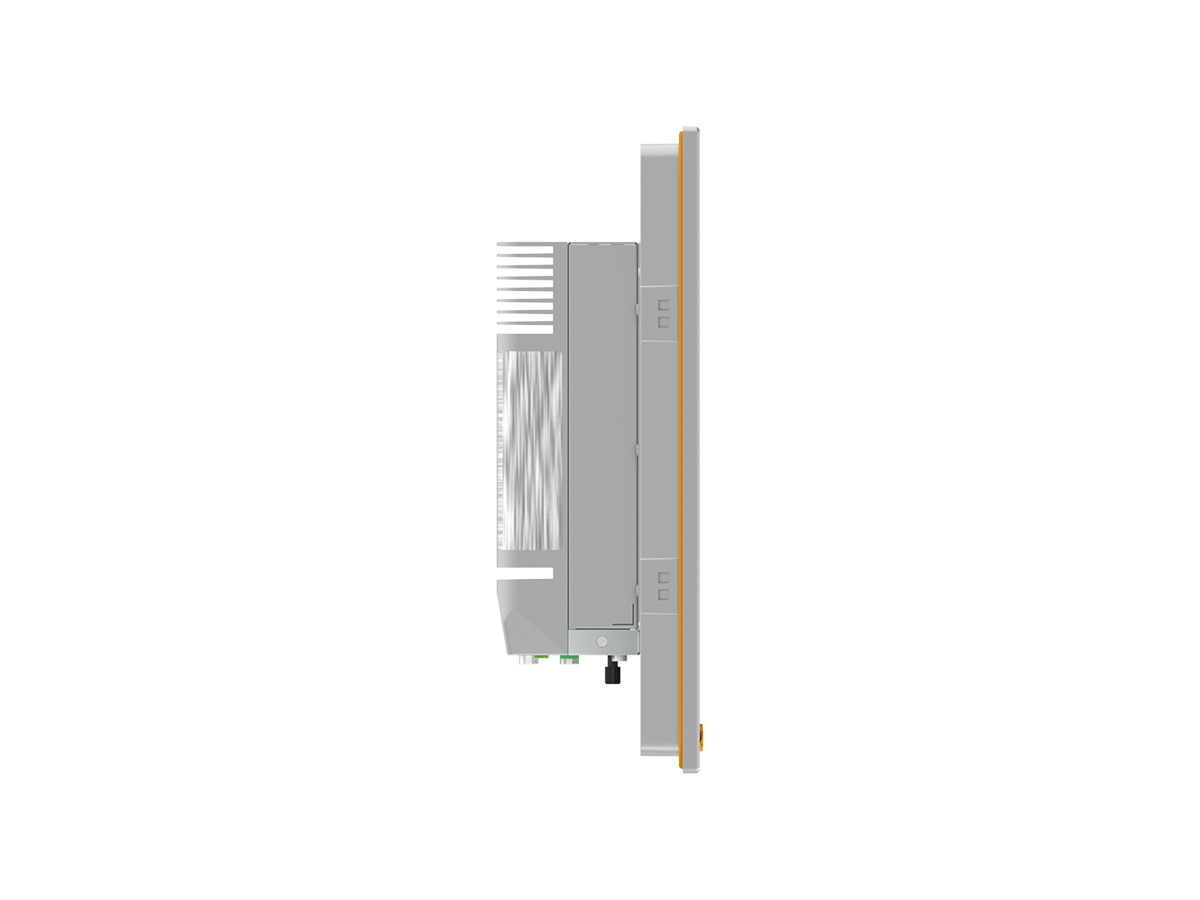

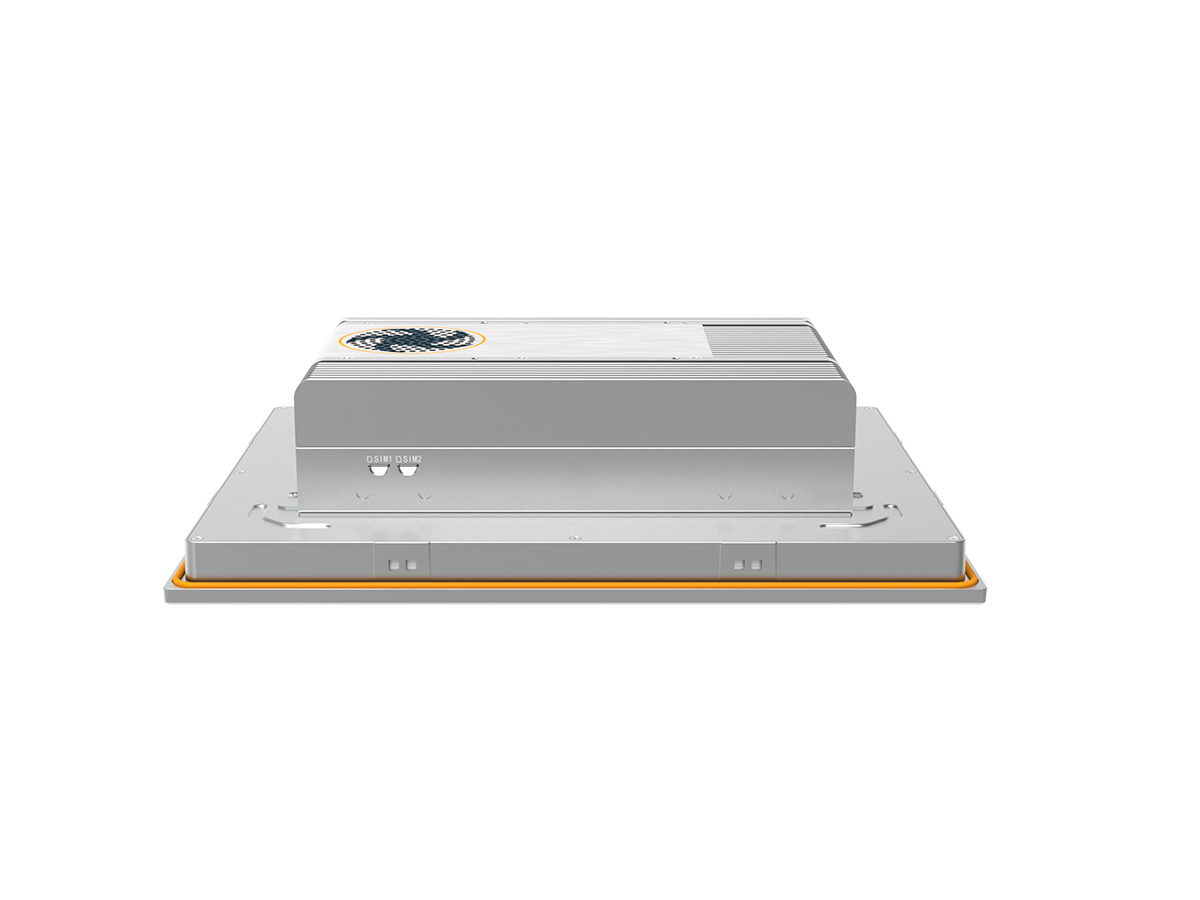

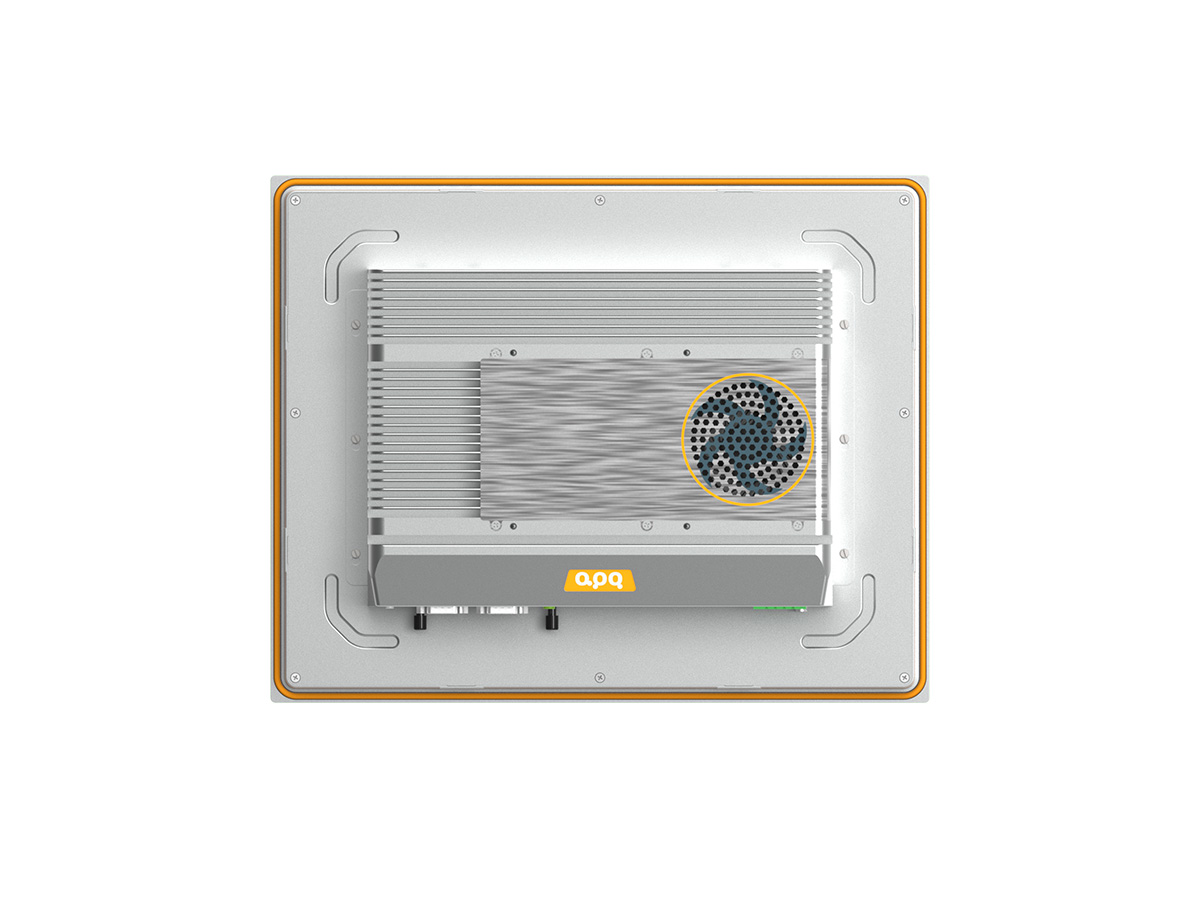

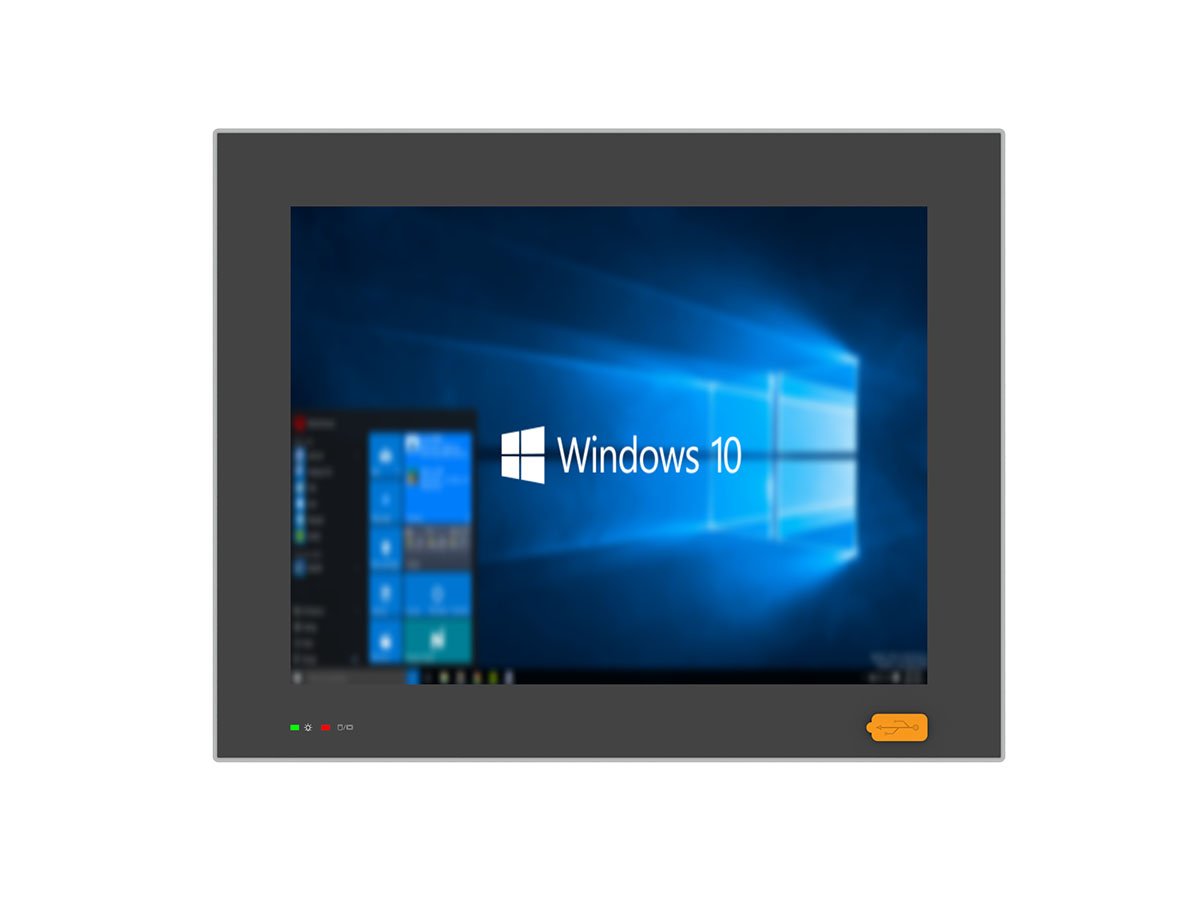

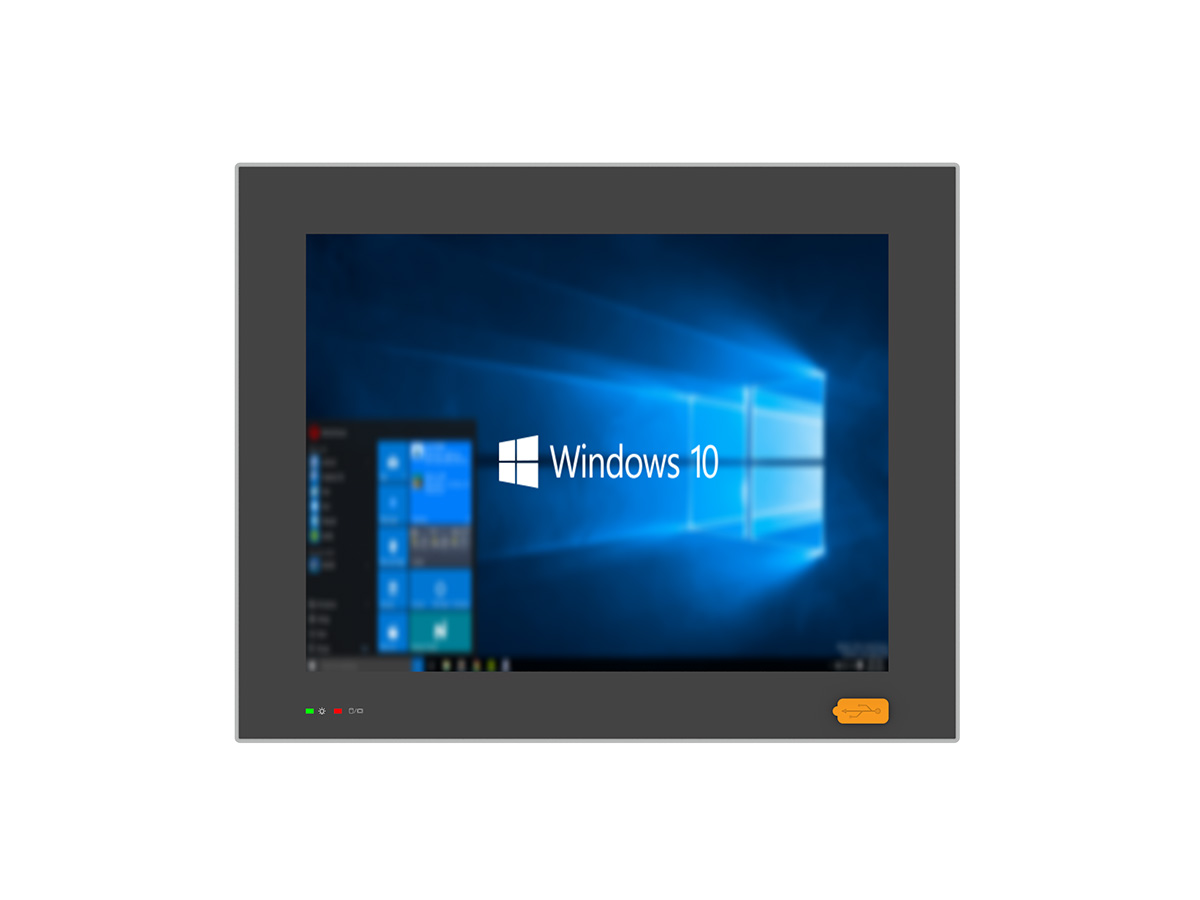

Note: The product image shown above is the PL150RQ-E7S-Q670 model

PLE7S系列Q670平臺 工業一體機/工業平板電腦 電阻觸摸屏

特點:

  • 全屏電阻觸摸屏設計
  • 模塊化設計12.1~21.5″可選,支持方屏/寬屏
  • 前面板滿足IP65要求
  • 前面板集成USB Type-A和信號指示燈
  • 支持Intel? 12th/13th Gen Core/Pentium/Celeron Desktop CPU, TDP 65W, LGA1700
  • 搭配Intel? Q670芯片組
  • 2個Intel網絡接口 (1 * 1GbE&1 * 2.5GbE)
  • 3路顯示輸出 HDMI，DP++和內部LVDS, 最高支持4K@60Hz分辨率
  • 豐富的USB、串口擴展接口和PCIe、mini PCIe、M.2擴展插槽
  • 智能風扇主動散熱

  • 遠程管理

    遠程管理

  • 狀態監控

    狀態監控

  • 遠程運維

    遠程運維

  • 安全控制

    安全控制

掃碼即可添加微信，售前客服為您提供咨詢服務

產品描述

阿普奇全PLxxxE7S系列Q670平臺工業一體機是一款卓越的工業級設備，專為嚴苛的工業環境而設計。采用穩定的全屏電阻觸摸屏技術，為用戶提供流暢、精準的觸控體驗，模塊化設計，支持12.1~21.5英寸的屏幕尺寸，并可選擇方屏或?qū)捚溜@示。其堅固耐用的前面板符合IP65要求，能夠應對各種惡劣的工業環境。支持Intel最新的12/13代Core/Pentium/Celeron處理器，并搭配Q670芯片組，提供強大的性能和高效的能耗控制。此外，它還集成了2個高速的Intel網絡接口（1GbE & 2.5GbE），支持高速網絡連接和數據傳輸。提供3路顯示輸出，包括HDMI、DP++和內部LVDS，最高支持4K@60Hz分辨率。此外，它還配備了豐富的擴展接口，包括USB、串口、PCIe、mini PCIe和M.2插槽，方便用戶連接各種外部設備和擴展功能。智能風扇主動散熱設計確保系統在高負載運行時的穩定性和可靠性。

總之，阿普奇PLxxxE7S系列Q670平臺工業一體機是一款卓越的工業級計算機，具備出色的性能和多樣化的功能，是工業自動化和邊緣計算領域的理想選擇。

產品介紹

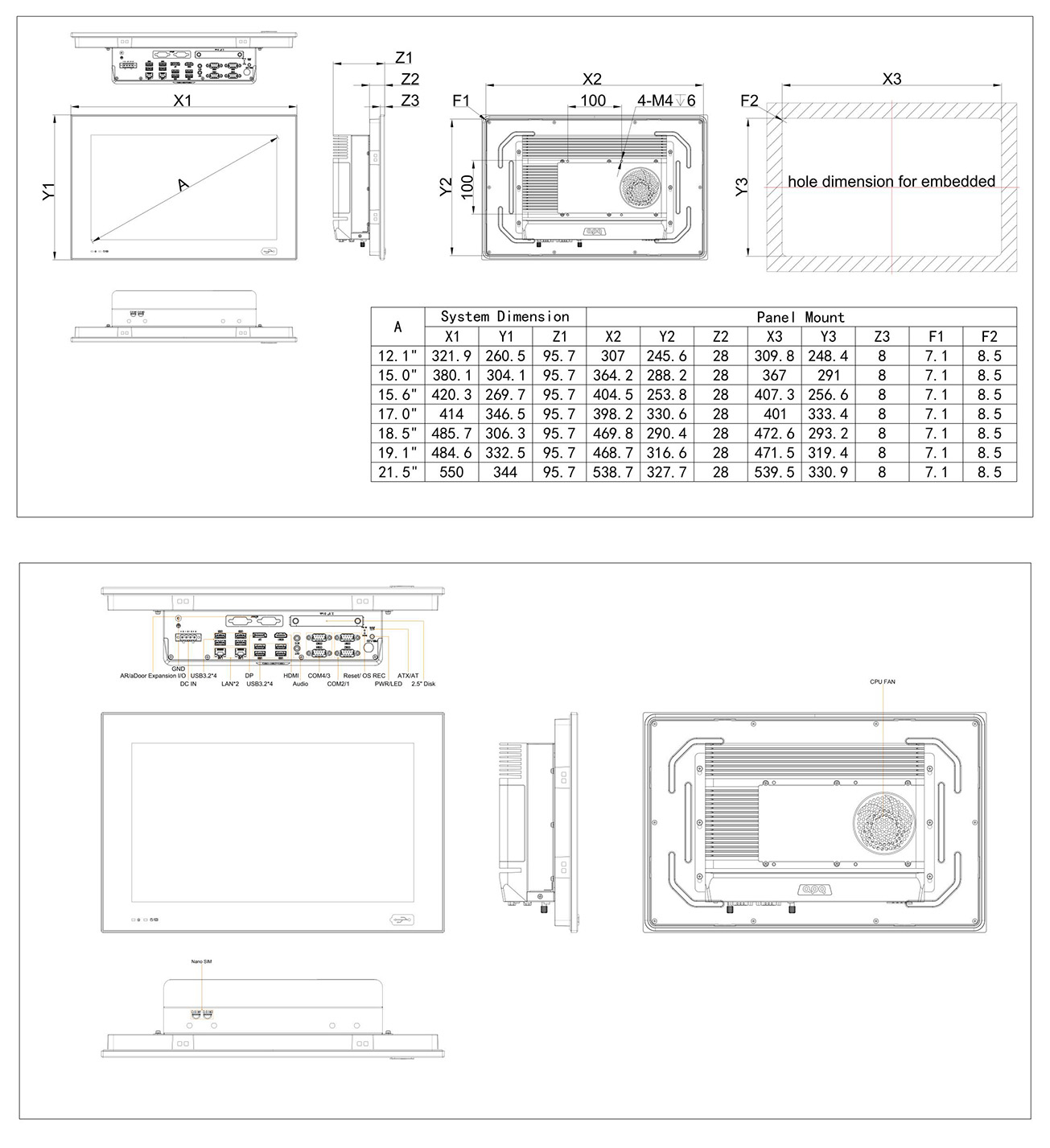

工程圖紙

下載產品資料

掃碼添加微信，獲取最新產品資料文件

Model PL121RQ-E7S PL150RQ-E7S PL156RQ-E7S P170RQ-E7S PL185RQ-E7S PL191RQ-E7S PL215RQ-E7S
LCD Display Size 12.1" 15.0" 15.6" 17.0" 18.5" 19.1" 21.5"
Display Type XGA TFT-LCD XGA TFT-LCD FHD TFT-LCD SXGA TFT-LCD WXGA TFT-LCD WXGA TFT-LCD FHD TFT-LCD
Max.Resolution 1024 x 768 1024 x 768 1920 x 1080 1280 x 1024 1366 x 768 1440 x 900 1920 x 1080
Luminance 350 cd/m2 300 cd/m2 350 cd/m2 250 cd/m2 250 cd/m2 250 cd/m2 250 cd/m2
Aspect Ratio 4:3 4:3 16:9 5:4 16:9 16:10 16:9
Viewing Angle 80/80/80/80° 88/88/88/88° 89/89/89/89° 85/85/80/80° 89/89/89/89° 85/85/80/80° 89/89/89/89°
Max. Color 16.7M 16.7M 16.7M 16.7M 16.7M 16.7M 16.7M
Backlight Lifetime 30,000 hr 70,000 hr 50,000 hr 30,000 hr 30,000 hr 30,000 hr 50,000 hr
Contrast Ratio 800:1 2000:1 800:1 1000:1 1000:1 1000:1 1000:1
Touchscreen Touch Type 5-wire resistive touch 5-wire resistive touch 5-wire resistive touch 5-wire resistive touch 5-wire resistive touch 5-wire resistive touch 5-wire resistive touch
Controller USB signal USB signal USB signal USB signal USB signal USB signal USB signal
Input finger/touch pen finger/touch pen finger/touch pen finger/touch pen finger/touch pen finger/touch pen finger/touch pen
Light Transmission ≥78% ≥78% ≥78% ≥78% ≥78% ≥78% ≥78%
Hardness ≥3H ≥3H ≥3H ≥3H ≥3H ≥3H ≥3H
Processor System CPU Intel? 12/13th Generation Core / Pentium/ Celeron Desktop CPU
TDP 65W
Socket LGA1700
Chipset Q670
BIOS AMI 256 Mbit SPI
Memory Socket 2 * Non-ECC SO-DIMM Slot, Dual Channel DDR4 up to 3200MHz
Max Capacity 64GB, Single Max. 32GB
Graphics Controller Intel? UHD Graphics
Ethernet Controller 1 * Intel i219-LM 1GbE LAN Chip (LAN1, 10/100/1000 Mbps, RJ45)
1 * Intel i225-V 2.5GbE LAN Chip (LAN2, 10/100/1000/2500 Mbps, RJ45)
Storage SATA 1 * SATA3.0, quick release 2.5-inch hard drive bay (T ≤ 7mm)
1 * SATA3.0, Internal 2.5" hard disk bays (T≤9mm, Optional)
Support RAID 0, 1
M.2 1 * M.2 Key-M (PCIe x4 Gen 4 + SATA3.0, NVMe/SATA SSD Auto Detect, 2242/2260/2280)
Expansion Slots aDoor 1 * aDoor Bus (Optional 4 * LAN/4 * POE/6 * COM/16 * GPIO expansion card)
Mini PCIe 2 * Mini PCIe (PCIe x1 Gen 3 + USB 2.0, with 1 * SIM Card)
M.2 1 * M.2 Key-E (PCIe x1 Gen 3 + USB 2.0, 2230)
Front I/O Ethernet 2 * RJ45
USB 2 * USB3.2 Gen2x1 (Type-A, 10Gbps)
6 * USB3.2 Gen 1x1 (Type-A, 5Gbps)
Display 1 * HDMI1.4b: max resolution up to 4096*2160 @ 30Hz
1 * DP1.4a: max resolution up to 4096*2160 @ 60Hz
Audio 2 * 3.5mm Jack (Line-Out + MIC)
Serial 2 * RS232/485/422 (COM1/2, DB9/M, Full Lanes, BIOS Switch)
2 * RS232 (COM3/4, DB9/M, Full Lanes)
Button 1 * Power Button + Power LED
1 * AT/ATX Button
1 * OS Recover Button
1 * System Reset Button
Rear I/O Antenna 4 * Antenna hole
SIM 2 * Nano SIM card slots
Internal I/O USB 6 * USB2.0 (wafer)
LCD 1 * LVDS (wafer): LVDS Resolution up to 1920*1200 @ 60Hz
Front Panel 1 * FPanel (PWR+RST+LED, wafer)
Audio 1 * Audio (Header)
1 * Speaker (2-W (per channel)/8-Ω Loads, wafer)
Serial 2 * RS232 (COM5/6, wafer)
GPIO 1 * 16 bits DIO (8xDI and 8xDO, wafer)
LPC 1 * LPC (wafer)
SATA 3 * SATA 7P Connector, up to 600MB/s
SATA Power 3 * SATA Power (wafer)
FAN 1 * CPU FAN (wafer)
2 * SYS FAN (KF2510-4A)
Power Supply Type DC, AT/ATX
Power Input Voltage 9~36VDC, P≤240W
18~60VDC, P≤400W
Connector 1 * 4Pin Connector, P=5.00/5.08
RTC Battery CR2032 Coin Cell
OS Support Windows Windows 10/11
Linux Linux
Watchdog Output System Reset
Interval Programmable 1 ~ 255 sec
Mechanical Enclosure Material Radiator: Aluminum alloy, Box: SGCC
Mounting VESA, Embedded
Dimensions
(L * W * H, Unit: mm)		 321.9*260.5*95.7 380.1*304.1*95.7 420.3*269.7*95.7 414*346.5*95.7 485.7*306.3*95.7 484.6*332.5*95.7 550*344*95.7
Weight Net: 6.66Kg
Total: 8.16 Kg		 Net: 8.05Kg
Total: 9.55 Kg		 Net: 7.95Kg
Total: 9.45 Kg		 Net: 8.8Kg
Total: 10.6 Kg		 Net: 8.65Kg
Total: 10.45 Kg		 Net: 10.05Kg
Total: 11.85 Kg		 Net: 9.58Kg
Total: 11.38 Kg
Environment Heat Dissipation System PWM FAN Cooling
Operating Temperature -20~60℃ -20~60℃ -20~60℃ -20~60℃ -20~60℃ 0~50℃ 0~50℃
Storage Temperature -20~60℃ -20~70℃ -30~80℃ -30~70℃ -30~70℃ -20~60℃ -20~60℃
Relative Humidity 10 to 95% RH (non-condensing)
Vibration During Operation With SSD: IEC 60068-2-64 (1Grms@5~500Hz, random, 1hr/axis)
Shock During Operation With SSD: IEC 60068-2-27 (15G, half sine, 11ms)
Certification CE/FCC, RoHS

PLxxxRQ-E7S-20231226_00
